Detailed Description

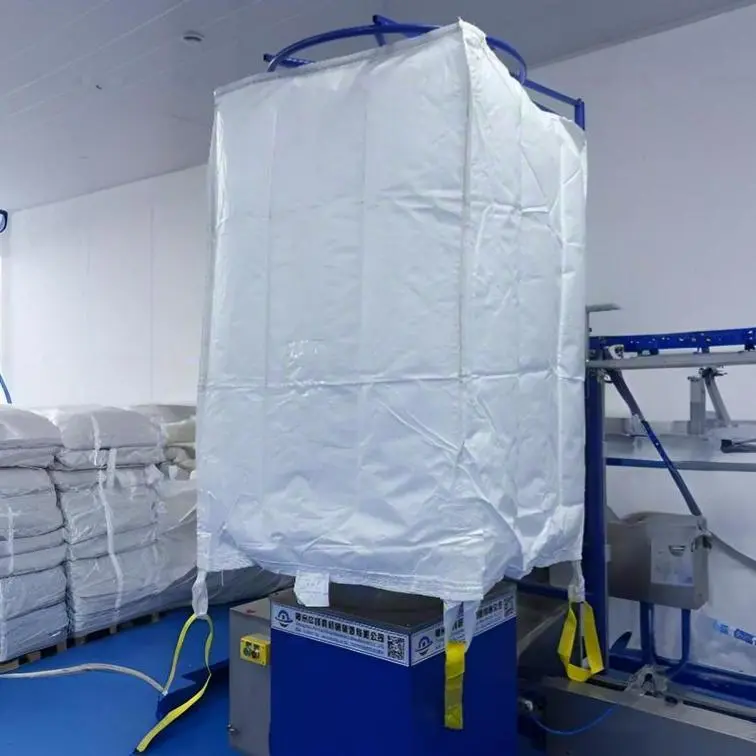

This laminated internal baffle FIBC is a customized heavy-duty bulk packaging solution exclusively developed for storing, stacking and long-distance shipping HDPE plastic pellets, HDPE granules, polyethylene resin and other polymer raw materials. The standard finished dimension of this form-stable bulk bag measures 103cm width × 103cm depth × 160cm height, designed to maximize container space utilization for plastic raw material logistics while maintaining stable vertical shape after full loading.
◈ High Tenacity Structure
Distinct from ordinary general-purpose FIBCs, all load-bearing structural accessories adopt premium high-tenacity polyester textile materials. The bag is configured with four integrated main lifting belts paired with four independent corner lifting rings.
◈ Form-Stable Design
Built-in internal baffle webbing restrains the bag body from bulging outward when filled, keeping the square profile neat and upright, greatly improving stacking stability and warehouse space efficiency.
◈ Secure Sealing
Equipped with custom-machined Type B lock buckles. The specialized lock structure firmly fastens the polyester drawstring without slipping, stopping fine plastic pellets from leaking during transportation.
An integrated outer lamination film is coated onto the woven polypropylene substrate, forming an intact moisture-proof barrier layer. The lamination effectively blocks humid air, rainwater and surface condensation from penetrating the bag interior, preventing HDPE pellets from absorbing moisture and caking.
Comprehensive OEM modification support covers all core parameters. Clients can customize arbitrary width, depth and height dimensions, adjust the rated safe working load ranging from 500kg up to 2000kg, and modify lifting hardware, closure styles, baffle layout and lamination thickness according to unique production workflows.
Frequently Asked Questions
What are the benefits of the internal baffle design?
The internal baffles (tension belts) allow the bag to maintain a square, stable shape after being filled. This prevents bulging, maximizes shipping container space, and improves safety during multi-layer stacking in warehouses.
Is this bag suitable for fine plastic granules?
Yes, it is specifically designed for HDPE pellets and granules. It features Type B lock buckles and specialized drawstring sealing to prevent even the finest particles from leaking during transit.
What is the maximum load capacity for these bags?
While the standard design is robust, we offer OEM customization for Safe Working Loads (SWL) ranging from 500kg up to 2000kg to suit different raw material densities.
How does the bag protect against moisture?
The bag is manufactured with an integrated outer lamination film over the woven polypropylene fabric. This creates a moisture-proof barrier that blocks humid air, rain, and condensation.
Can I customize the dimensions of the FIBC?
Absolutely. Beyond our standard 103x103x160cm size, we provide full OEM support to customize the width, depth, height, and lifting configurations based on your specific logistics requirements.
What materials are used for the lifting systems?
We use premium high-tenacity polyester textile materials for all load-bearing accessories, including the four main lifting belts and four corner rings, to ensure maximum safety and durability.
